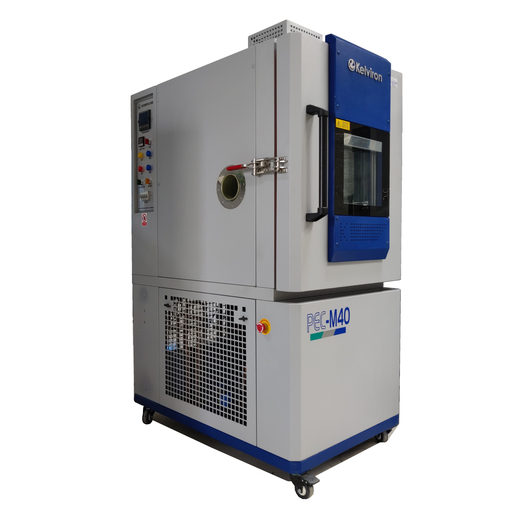

Tropical Test Chamber

The features of our TTC Series Tropical Test Chamber. Tropical TestChamber is as per the IEC Standards IEC60068, MIL & JSS55555, Temperature can be customised according to customers need. The size of the chamber is customer-specific and process-integrated systems, with the latest technology. Customers can select optimal model for their needs based on performance and test area capacity. The equipment is accurately measured by a temperature and humidity sensor and controlled by an industrial programmable controller. Customers can select optimal model for their needs based on performance and test area capacity. A benefit of this TTC Series Tropical Test Chamber is, it comes with an unconditional 2 years warranty.

Control Instrumentation- HMI Red Lion & Siemens (PLC)

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

Control Instrumentation -Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature withdigital display powerful PID, no of programs & segments each could be stored in ramp &soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete historyprinting & storing facility.

Refrigeration system

Single or Cascade system. Compressors:Bitzer/GEA Hermetic or semi hermetic. Sealed compressor will be provided for low temperature. The compressor used in the system is Emerson. Liquid receiver &Filter (Danfoss-Denmark), wellbalanced Hi cool(CE approved Condenser fan with safety grill)

Humidification system

The humidification system will be of steam humidifierwith Low-pressure moisture generator provided in builtwith chamber construction. It will be located insideducting place and top opened steam exhaust through aircirculation. The steam generation is very fine mistcirculating throughout the work space and will becondensed free vaporization. 2.0 KW wet heater will beusing to achieve maximum RH limit. The wet Heateroperating power will be driven through the opto isolatedsolid-state relays. It is operating gradual % of PID outputso that current efficient not decrease for power fluctuation during the operation.

Components

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika,TAIE, EYC etc.
