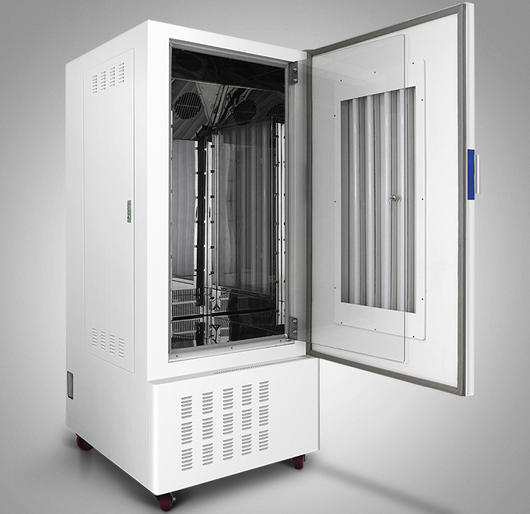

Seed Germinator and Walk in Seed Storage Chamber

Seed Germinator and Walk in Seed Storage Chambers help you to test the influence of Temperature and Humidity on the properties, function and life span of your products. This Chamber is user-friendly, Thanks to the modular system, the walk-in chamber can be configured quickly and easily. The features of our SGC Series Seed Germinator and Walk in Seed Storage Chamber. Seed Germinators and Seed walk-in rooms are designed to use in performing seedling process in laboratories. A seed germination machine provides controlled environment for propagation of seeds, incubation, seed germination and development tests. In this equipment, temperature, relative humidity and light are managed to create essential conditions responsible for adequate seeding. The aim of seed germination is to inspect thoroughly the viability of seeds. To explain it more, seed germination is a process by which we examine how many seeds are able to grow and produce a satisfactory crop. Seed germination results are also used in seed labelling, certification and sowing purposes. Seed Germinator is a cabinet type equipment; which generally comes in single and double door models. Working principle of a walk-in room seed germinator is same as seed germinator chamber. It is the size and capacity of inner space that make difference. When there is need of large seed germination process, walk-in room type seed germinators seem best option. In such equipment, provision of entering a man is given. A man can enter in walk-in seed germinator room and examine the seeding status closely. Seed germinators often known as Seed Germination Incubator systems, provide accurate solution for seed germination process. These units feature advanced insulating, lighting technology, excellent climatic control and programmable microprocessor control system. Below mentioned are some of excellent features that make these seed germinator units most suitable for laboratory, agriculture and other applications. Customers can select optimal model for their needs based on performance and test area capacity. Each Walk in Chamber is tested at the factory to meet your test specifications. A benefit of this SGC Series Seed Germinator and Walk in Seed Storage Chamber is, it comes with an unconditional 2 years warranty.

Control Instrumentation- HMI Red Lion & Siemens (PLC)

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

Control Instrumentation - Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature with digital display powerful PID, no of programs & segments each could be stored in ramp & soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete history printing & storing facility.

Refrigeration system

Single or Cascade system. Compressors: Bitzer/GEA Hermetic or semi hermetic. Sealed compressor will be provided for low temperature. The compressor used in the system is Emerson. Liquid receiver & Filter (Danfoss-Denmark), well balanced Hi cool (CE approved Condenser fan with safety grill)

Components

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika, TAIE, EYC etc.
