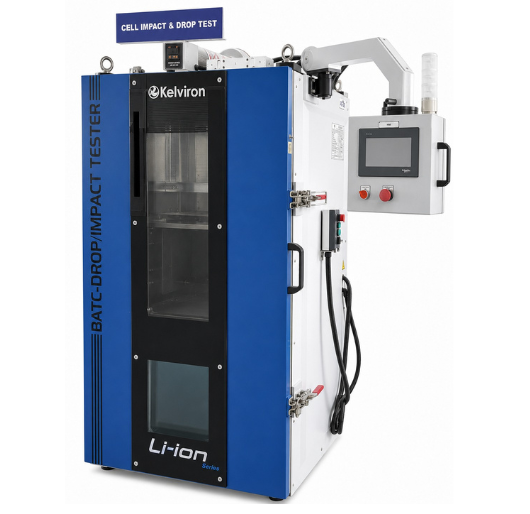

Drop and Impact Test Chamber
- Internal Dimensions: Customized chamber sizes available
- Heavy-duty fabricated steel structure with robust sheet metal enclosure
- 20 mm thick reinforced mild steel platform for high-load applications
- Drop Height: Adjustable from 0 to 1000 mm
- Impact Height: Adjustable up to 1000 mm
- Automatic height setting through HMI for precise and repeatable testing
- Impact Mass: 9.1 kg (±0.1 kg)
- Drop Height: Approximately 610 mm (±25 mm)
- Impact Bar: 15.8 mm diameter cylindrical steel bar
- Material Options: SS316 or Hardened EN24 Steel
- Material Hardness: 50–54 HRC
- Load Bearing Arm Capacity: Up to 800 kg
- 7-inch HMI with Schneider / Pro-face PLC
- User-friendly graphical interface
- Fully automatic test operation
- Programmable test parameters
- Schneider handheld electronic control pendant
- Convenient local operation during testing
- Enhanced operator accessibility
- Schneider switchgear and control components
- Industrial-grade electrical control panel
- Reliable PLC-based automation
- Janatics pneumatic / hydraulic cylinder
- Cylinder Size: Ø50 mm × 200 mm stroke
- Omron Servo Motor
- 2 kW Drive with Duro Drive / Transtech gearbox
- Optimized movement speed for accurate testing
- Impact Height Recording
- Drop Height Recording
- Impact Force vs Time Graph
- Cycle Information
- Component Description
- Customer Details
- Complete Test History
- Automatic data storage to USB Pen Drive
- Designed to meet EUCAR Level 5 safety requirements
- Fire Suppression & Protection System (EU Make)
- Automatic Fire Detection using Temperature Sensors
- Audio Alarm System
- Programmable Temperature Safety Limits
- Emergency Stop Push Button
- Double Earthing Protection
- Multi-color Tower Status Lamp
- Scrubber Connection for Safe Gas Exhaust
- Deflagration Pressure Bypass Vent System
- EV Battery Pack Testing
- Lithium-ion Battery Safety Validation
- Automotive R&D Laboratories
- Battery Manufacturing Facilities
- Research Institutes
- Certification & Testing Laboratories
- Quality Assurance & Product Development Centers
Large Test Chamber
Integrated Drop & Impact Testing
Impact Mechanism
High Load Capacity
Advanced Control System
Secondary Operating System
Electrical System
Motion System
Intelligent Data Logging
Safety Features
Applications
Drop and Impact Test Chamber
Programmable Drop and Impact Test is designed as per the IEC Standards IEC60068, MIL & JSS55555These are mono-block systems, Programmable Drop and Impact Tests are built with highest quality and reliability. Drop and Impact Tests realistically simulates the environment according to high temperature and humidity or Tropical climate conditions.Drop and Impact heat tests, and temperature & humidity cycling tests combining individual tests are fundamental types of development, quality assurance and reliability testing. In addition to development tests and reliability tests, the temperature chambers used for these tests are also widely used for heat treatment processes such as temperature aging and humidity control on production lines, and screening tests on test lines. This Chamber can meet the most stringent testing needs of various international standards. It provides solutions for testing large components and finished products for many industries. This Drop and Impact Test Chamber is designed to meet quality standards while offering flexibility, uniformity and controls accuracy for cost effective testing. Customers can select optimal model for their needs based on performance and test area capacity. A benefit of this DHC Series Programmable Cold & Hot Chamber is, it comes with an unconditional 2 years warranty.
Port
Holes, shelves and trays as per the requirement
Components
Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika,TAIE, EYC etc.
