Drive-in Rain Test Chamber

  • Size: Cutomized
  • Standards: JSS55555
  • Application: Whole body testing of assembled vehicles under different
  • rain test procedures to study and estimate their structural degradations and
  • destructions induced by rain/water.
  • The twin shower area with 10L litre & 30K litre volume is enclosed in a shed where
  • arrays of pipes are interconnected to form zones to ensure the uniform spraying
  • as per JSS 55555 test standard.
  • The water sprayed through the nozzle at a flow rate of up to 288 cu m/hr
  • and the test chamber water collection system have a central grating with
  • sufficient slope to collect the sprayed water during operation and circulate it
  • back to the water reservoir to ensure close loop circulation.
  • Temperature Range: Ambient or as per customer’s specifications.
  • Safety features upgraded as per the standard
  • Warranty: unconditional against any manufacturing defect: 2Years.

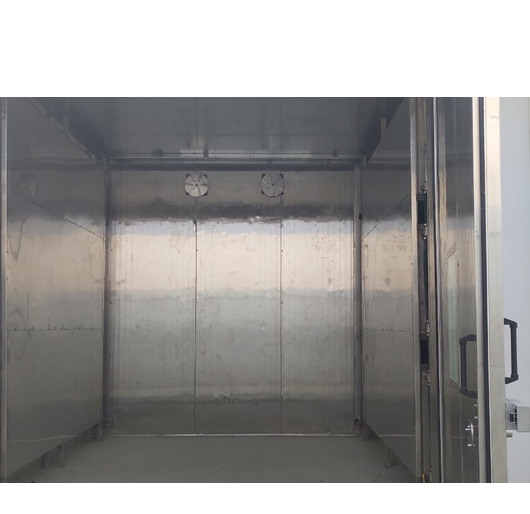

Drive in RainTest Chamber

The features of our RTC Series Drive in Rain Test Chamber. Rain Test Chamber is as per the IEC Standards IEC-60068/ 60529. The Drive in Rain Test Chamber is an environmental Chamber makes rain and spray testing easier by offering a standard chamber capable of published and OEM proprietary test methods.This chamber is designed to performTest for ingress protection against water. Our system uses multiple control solenoids to vary the water's spray volume/pressure. A holding tank prepares the water to the desired temperature if required. A pump ensures the water is delivered in the proper pressure range. The spray is activated via a programmable controller that sets the test mode and its desired parameters. In this chamber The water gushes through the nozzle at a flow rate of up to 288 cu m/hr and the test chamber water collection system have a central grating with sufficient slope to collect the sprayed water during operation and circulate it back to the water reservoir to ensure close loop circulation. The equipment is accurately measured by a temperature and humidity sensor and controlled by an industrial programmable controller Temperature can be customised according to customers need. The size of the chamber is customer-specific and process-integrated systems, with the latest technology. Customers can select optimal model for their needs based on performance and test area capacity. The equipment is accurately measured by a temperature and humidity sensor and controlled by an industrial programmable controller. Customers can select optimal model for their needs based on performance and test area capacity. A benefit of this RTC Series Drive in Rain Test Chamber is, it comes with an unconditional 2 years warranty.

Control Instrumentation-

A control panel consisting of required instruments and controls will be provided for ease of operation. Mains / MCB on-off switch with Phase indicators. Outputs indicators for functional status. Single phase, phase reversal, under voltage and over voltage protection for main inputpower.Protection for water pump against over load. The IP Test chamber will be capable of operating on single phase 240V ± 10% or 3 Phase415V ± 10%.The set-up will basically consist of a drip box mounted on top of a support stand with flowcontrol and shut off valve, water pump, piping and any connecting hose. The support standwill be fabricated out of stainless steel (AISI-304 Grade) with adequate strength and rigidity.All the joints and corners will be made with high quality TIG welding and buffing. Lockablecastor wheels will be provided for easy mobility. The design of the stand will be suitable toplace a turn-table carrying the test specimen below the drip box.SS glycerin filled Pressure gauges and digital water flow meter. HMI touch panel for set the test cycle as per standard cycles. Automatic fault detecting system to easy &trouble free operation.For oscillationcycles automation integrated withHMI & PLCController

Components

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika,TAIE, EYC etc.
