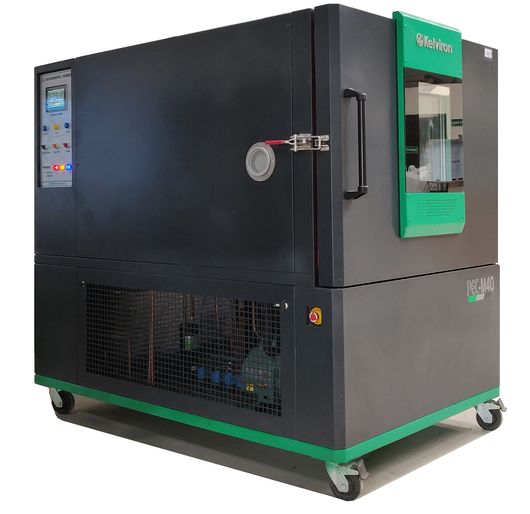

Damp Heat Test Chamber

Programmable Damp Heat Test Chamber is designed as per the IEC Standards IEC60068, MIL & JSS55555These are mono-block systems, Programmable Damp Heat Test Chambers are built with highest quality and reliability. Damp Heat Test Chambers realistically simulates the environment according to high temperature and humidity or Tropical climate conditions.Damp heat tests, and temperature & humidity cycling tests combining individual tests are fundamental types of development, quality assurance and reliability testing. In addition to development tests and reliability tests, the temperature chambers used for these tests are also widely used for heat treatment processes such as temperature aging and humidity control on production lines, and screening tests on test lines. This Chamber can meet the most stringent testing needs of various international standards. It provides solutions for testing large components and finished products for many industries. This Damp Heat Test Chamber is designed to meet quality standards while offering flexibility, uniformity and controls accuracy for cost effective testing. Customers can select optimal model for their needs based on performance and test area capacity. A benefit of this DHC Series Programmable Cold & Hot Chamber is, it comes with an unconditional 2 years warranty.

Control Instrumentation- HMI Red Lion & Siemens (PLC)

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

Control Instrumentation -Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature withdigital display powerful PID, no of programs & segments each could be stored in ramp &soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete historyprinting & storing facility.

Refrigeration system

Single or Cascade system. Compressors:Bitzer/GEA Hermetic or semi hermetic. Sealed compressor will be provided for low temperature. The compressor used in the system is Emerson. Liquid receiver &Filter (Danfoss-Denmark), wellbalanced Hi cool(CE approved Condenser fan with safety grill)

Port

Holes, shelves and trays as per the requirement

Components

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika,TAIE, EYC etc.
