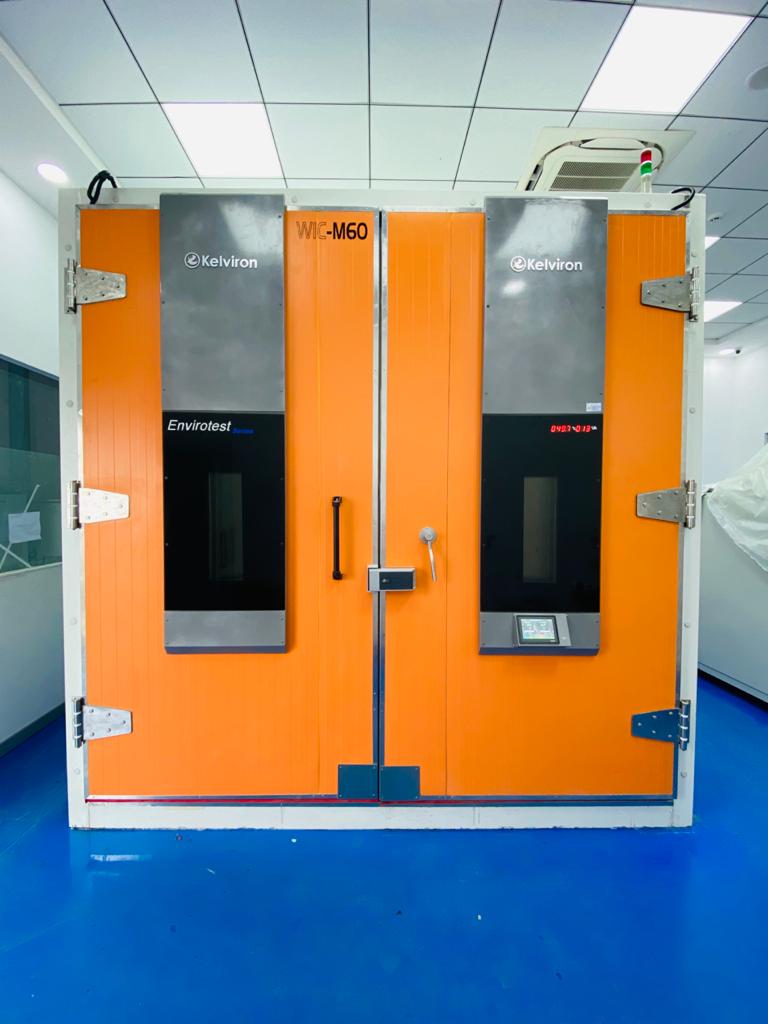

Programmable Cyclic Walk-in Chamber

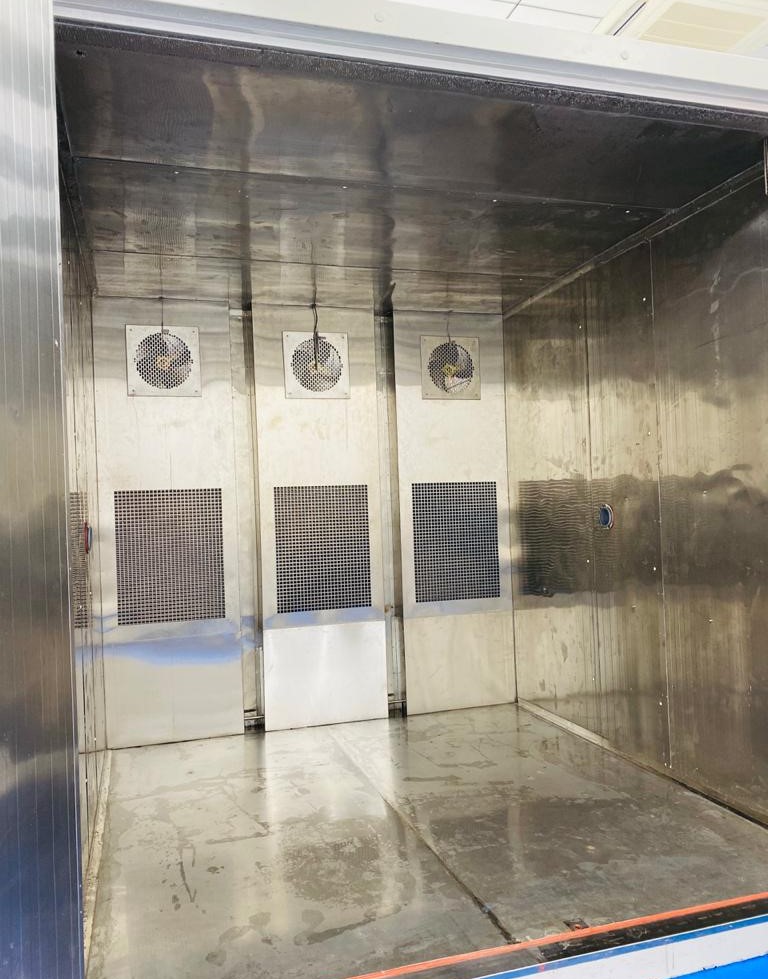

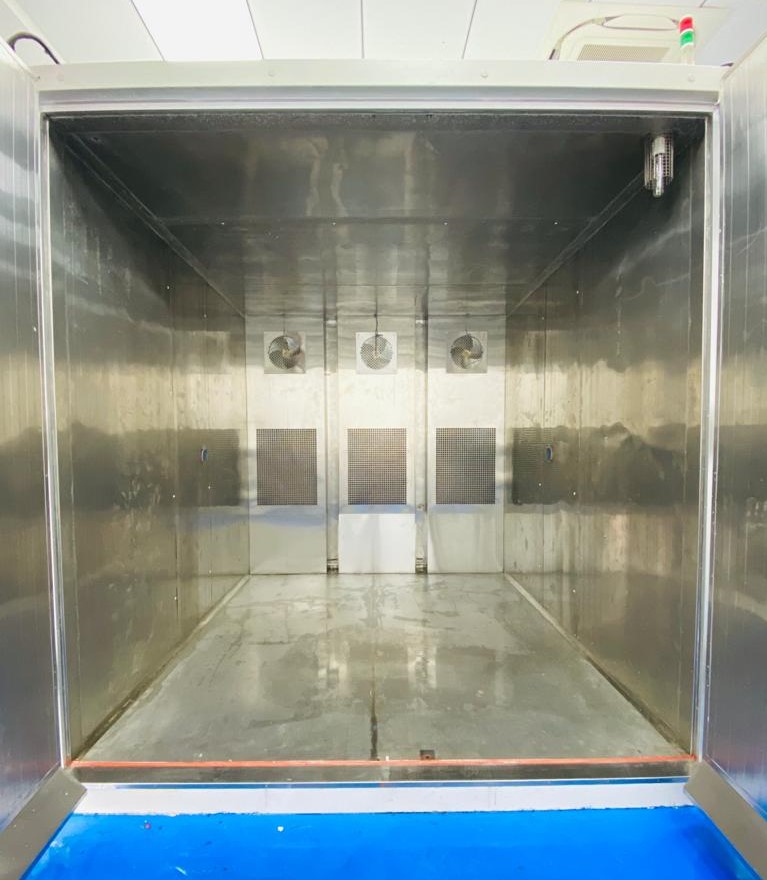

Programmable Cyclic Walk-in Chamber is designed as per the IEC Standards IEC60068, MIL & JSS55555.Walk in Chambers help you to test the influence of Temperature and Humidity on the properties, function and life span of your products. This Walk in Chamber is user-friendly, Thanks to the modular system, the walk-in chamber can be configured quickly and easily.The chamber can be accessed and controlled remotely via Ethernet. The walk in Chamber is made out of Pre-fabricated PUF /ROCKWOOL Panels.Walk-in chambers utilize foam panels that are connected together to form various size rooms. We use modular conditioning systems which include refrigeration, air circulation, electrical components, optional humidification needed to control your chamber environment.We have Walk-In Chambers which are mono-block chambers, can withstand high temperature and high humidity along with swift temperature change rates/min.Temperature can be customised according to customers need. The size of the chamber is customer-specific and process-integrated systems, with the latest technology. Customers can select optimal model for their needs based on performance and test area capacity.Each Walk in Chamber is tested at the factory to meet your test specifications. A benefit of this PWC Series Cyclic Walk in Chamber is, it comes with an unconditional 2 years warranty.

Control Instrumentation- HMI Red Lion & Siemens (PLC)

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

Control Instrumentation -Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature withdigital display powerful PID, no of programs & segments each could be stored in ramp &soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete historyprinting & storing facility.

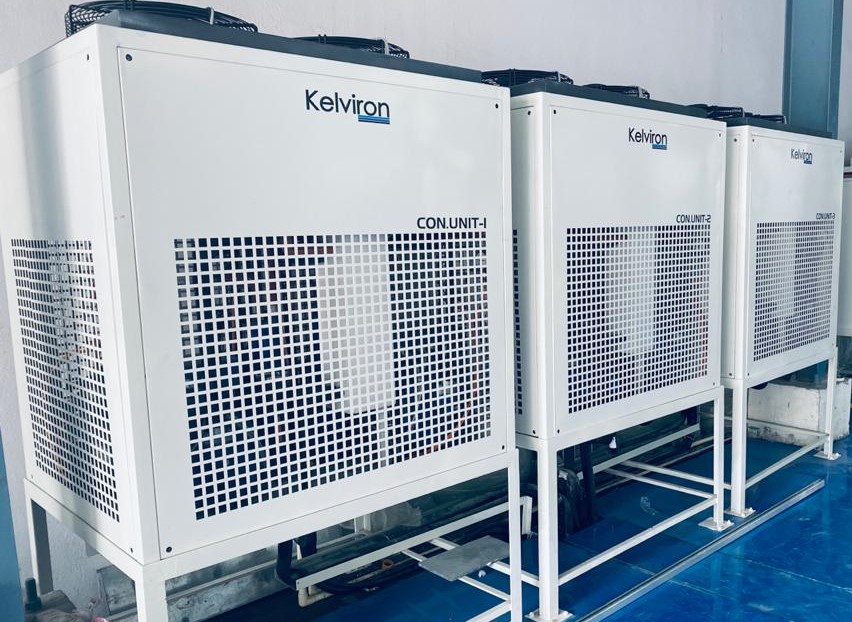

Refrigeration system

Single or Cascade system. Compressors:Bitzer/GEA Hermetic or semi hermetic. Sealed compressor will be provided for low temperature. The compressor used in the system is Emerson. Liquid receiver &Filter (Danfoss-Denmark), wellbalanced Hi cool(CE approvedCondenserfanwithsafety grill)

Components

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika,TAIE, EYC etc.
