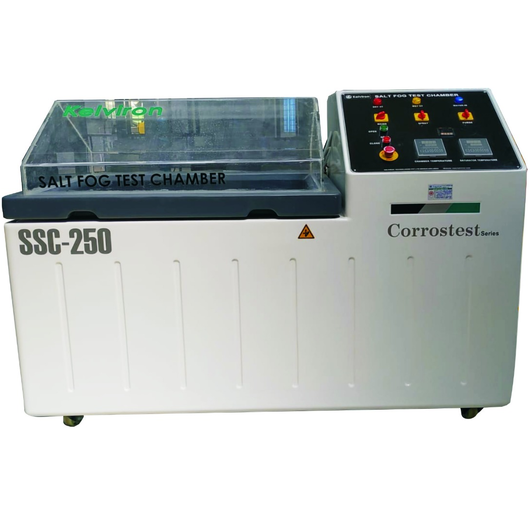

Cyclic Salt Fog Test Chamber

Programable Salt Spray Fog Chamber,Walk-in Salt spray chamber is used for automotive industry. This Chamber is as per ASTM-B117 standards. The features of our SSC Series Programable Salt Fog /Spray Chamber. Salt Spray Chamber used for testing the corrosive resistance of products where the surface is treated with paint, electroplating, inorganic and organic film, anode handling, anti-rust oil, fasteners testing, aging test, weathering test, etc. With acrylic nozzle, it has the characteristics of smooth interior wall, accurate angle and no crystalline in long-time spraying. Distinctive pneumatic door design makes the chamber door easy to open and close. The inner and external shell of the chamber is made from FRP materials; Easy launder no leakagephenomenon.salt spray chambers can simulate the marine climate and can be used to test the salt fog resistant performance of materials, products and their coatings. They can also be used to evaluate the quality of the coatings. The interior and exterior sides of the salt spray chamber are made of FRP glass fibre reinforced plastics, which is corrosion resistance, Anti-aging, high strength, P.P high temperature resistance also and easy to clean.Customers can select optimal model for their needs based on performance and test area capacity. A benefit of this SSC Series Programable Cold Chamber is, it comes with an unconditional 2 years warranty.

Salt Fog Test Chamber Control Instrumentation

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

Salt Fog Test Chamber manufacturers Control Instrumentation -Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature with digital display powerful PID, no of programs & segments each could be stored in ramp & soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete history printing & storing facility.

Saturator System

Saturator tank with a built-in automatic water level Controller isdesigned to meet the relevant standards stainless steel non-corrosive vessel, capable of withstanding high pressure and safetycomponents are built on it, for continuousoperation. Solution control pump (non corrosive type) will be used for control the spray mist inside the chamber. Also it will control the flow rate and collection of the fog as per ASTM standard.

Components

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika, TAIE, EYC etc.
