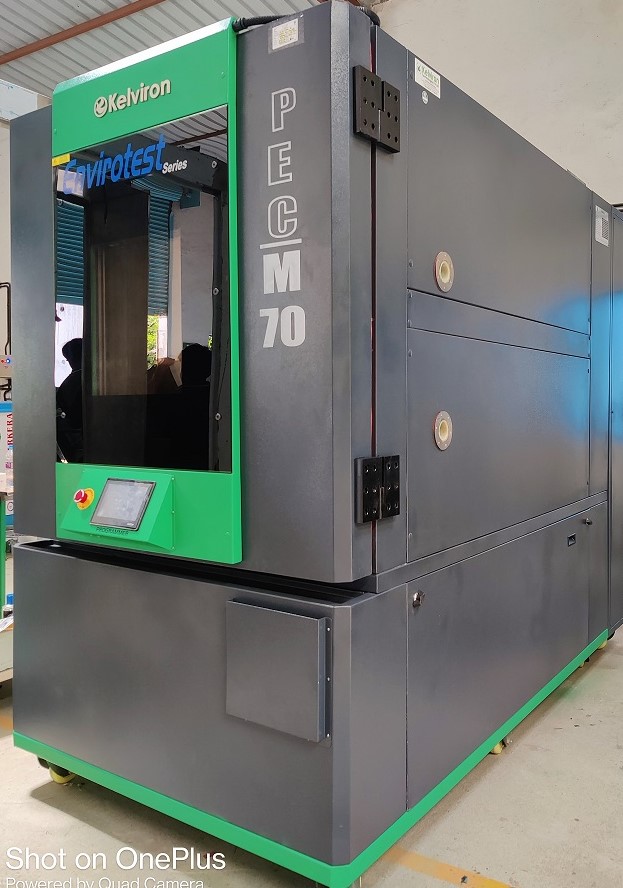

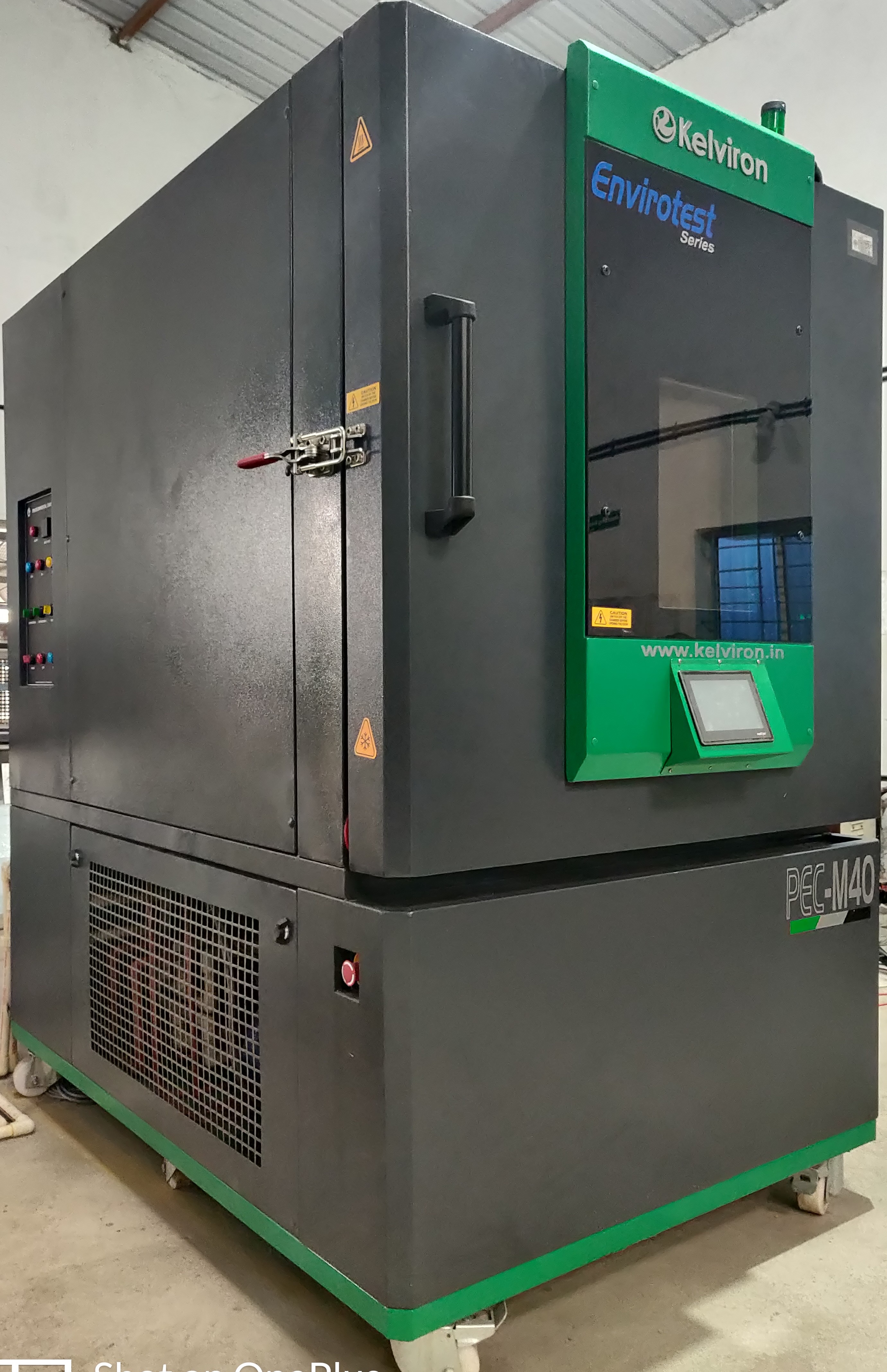

Cyclic Environmental test Chamber & Climatic test Chamber

Size: 100lts~8000ltrs
Standards: IEC60068, MIL & JSS55555
Temperature Range: -80°C~180°C ***Can be customized according to customer’s need
Temperature Deviation: ±1°C
Temperature Uniformity: ±1°C
Temperature Fluctuation: ±0.5°C
Heating Rate: 1°C~20°C/Min
Cooling rate: 1°C~17°C/Min
Humidity Range: 20%~97%
Humidity Deviation: ±3%
Humidity Fluctuation: ±1%rh

Cyclic Environmental Test Chamber manufacturers

Cyclic Environmental and Climatic Chamber as per the IEC Standards IEC60068, MIL & JSS55555, Temperature can be customised according to customers need. The size of the chamber is customer-specific and process-integrated systems, with the latest technology. Customers can select optimal model for their needs based on performance and test area capacity. A benefit of this PEC Series Cyclic Environmental and Climatic Chamber is, it comes with an unconditional 2 years warranty.

Control Instrumentation- HMI Red Lion & Siemens (PLC)

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

Control Instrumentation - Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature with digital display powerful PID, no of programs & segments each could be stored in ramp & soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete history printing & storing facility.

Refrigeration system

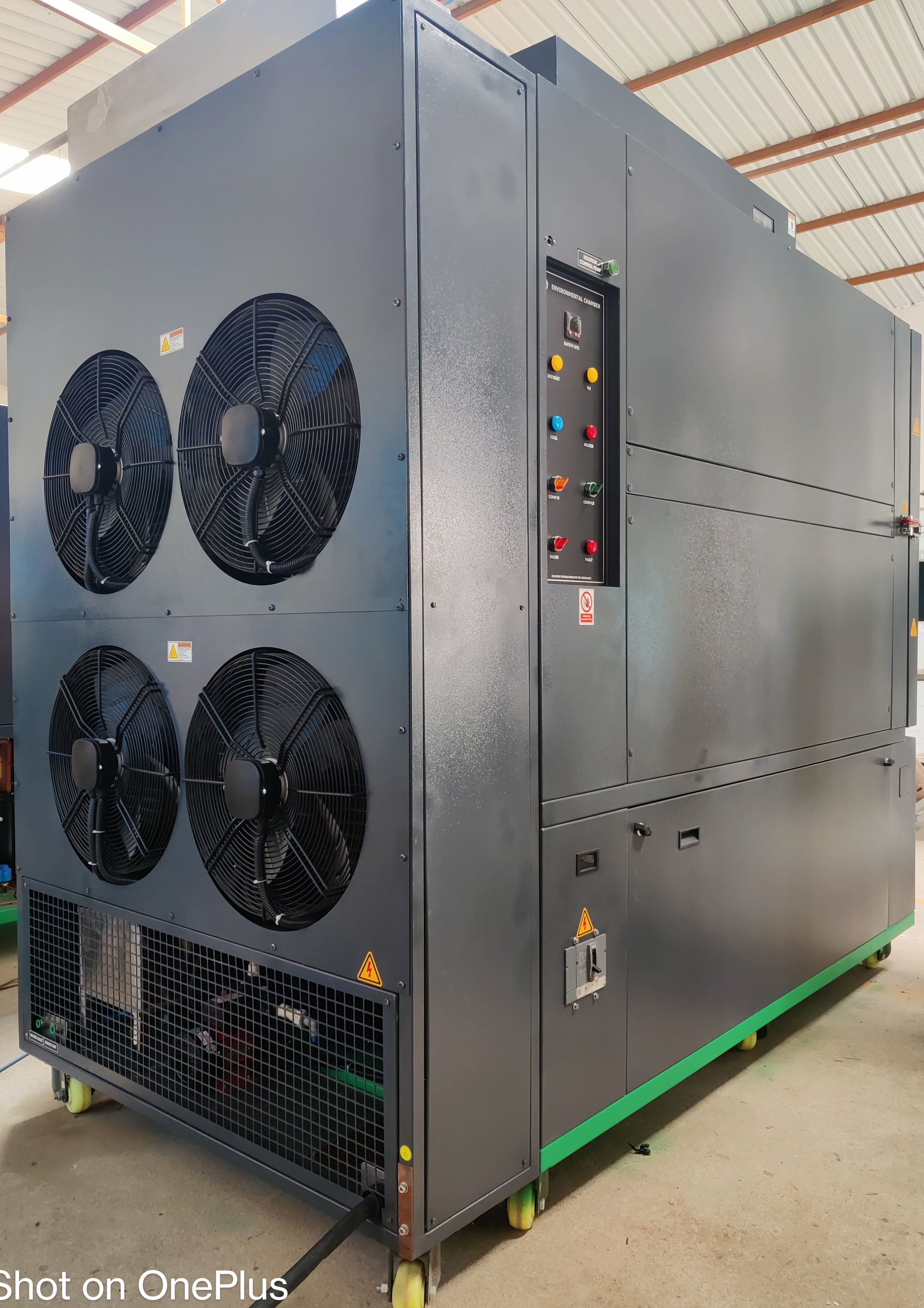

Single or Cascade system. Compressors: Bitzer/GEA Hermetic or semi hermetic. Sealed compressor will be provided for low temperature. The compressor used in the system is Emerson. Liquid receiver & Filter (Danfoss-Denmark), well balanced Hi cool (CE approved Condenser fan with safety grill)
