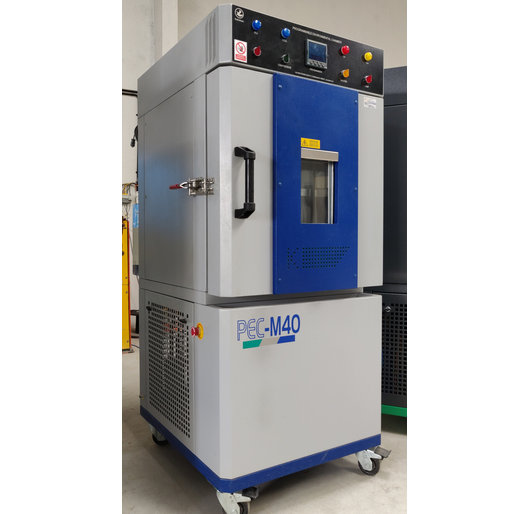

Programable Cold Chamber is as per the IEC Standards IEC60068, MIL & JSS55555,The inner walls of the Cold Chamber are insulated with high quality raw materials, to maintain constant cold temperatures inside the chambers. These products are offered with digital controllers cum indicators with effective sensors. The chambers are offered at standard market prices. These chambers are manufactured using latest machinery coupled with advanced technology. The Cold Chambers are generally used in QC Labs, R & D Labs, QA Labs, plasma storage, storage, Impact Testing, Sub-zero Treatment, Automobile Industriesetc... The Cold Chambers are used to replicate extremely low temperatures in order to observe and evaluate the after effects of the freezing conditions on a product or material. Cryogenic, LN2 or liquid nitrogen, processing is widely used by industries including automotive, aerospace, medical and food processing due to the critical nature of their products. It can be seen in applications such as chilling and flash-freezing food for extended preservation, rocket fuel production from liquid gases, the preparation and preservation of medicines, and in metal processing - for example, knife production, as it has been shown that metals show more resistant to wear and tear after cryogenic exposure.Each element of the test and testing conditions has to be taken into consideration - such as already existing environment and climate, the potential addition of interior chamber lighting and thus extra heat, and the variations that already exist between products and materials.Temperature can be customised according to customers need. The size of the chamber is customer-specific and process-integrated systems, with the latest technology. Customers can select optimal model for their needs based on performance and test area capacity. A benefit of this PCC Series Programable Cold Chamber is, it comes with an unconditional 2 years warranty.

Control Instrumentation- HMI Red Lion & Siemens (PLC)

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

Control Instrumentation -Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature withdigital display powerful PID, no of programs & segments each could be stored in ramp &soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete historyprinting & storing facility.

Refrigeration system

Single or Cascade system. Compressors:Bitzer/GEA Hermetic or semi hermetic. Sealed compressor will be provided for low temperature. The compressor used in the system is Emerson. Liquid receiver &Filter (Danfoss-Denmark), wellbalanced Hi cool(CE approvedCondenserfanwithsafety grill)

Components for Altitude Chamber

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika,TAIE, EYC etc.
