Altitude Test Chamber Manufacturers and Suppliers Bangalore India

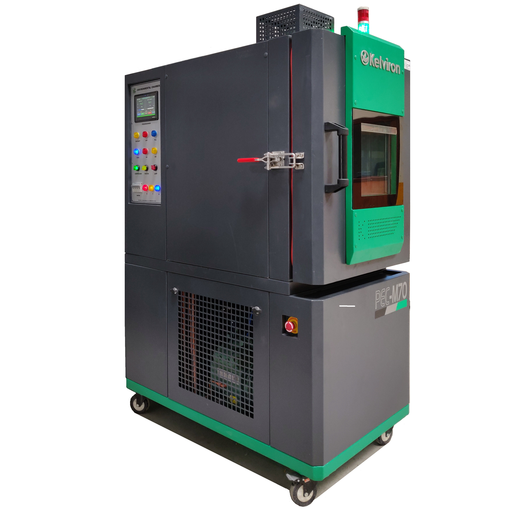

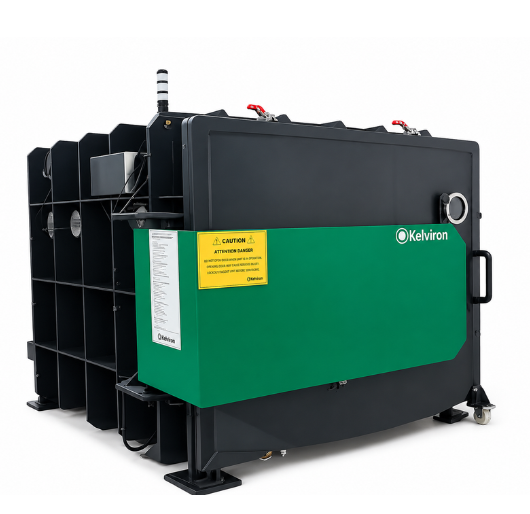

The features of our PHC Series Programmable Altitude Chamber. This Chamber is as per IEC standard, MIL standard, JSS55555 standard, ISO standard, BS standards.Altitude Test Chambers combine temperature and altitude to test basic components or sub-assemblies designed for use in a variety of industries, mainly aerospace & space. This chamber has an interior that can be so controlled as to simulate the air pressure, humidity, and temperature encountered at various altitudes.With altitude test chambers, user can control the temperature environment for testing while simulating various altitudes from site level to 100,000 feet (1.12kPa). High and low Temperature Altitude Test Chamber is used to test temperature and low-pressure altitude conditions simultaneously. Testing of avionics or other aerospace equipment to simulate actual conditions it might experience.Simulation of high-altitude conditions like might be found in mountainous regions. Applicable test methods (depending on chamber system specified). Altitude Equipment is sized according to volume of space and number of users and is paired either with multiple E-100 Generators or our Elevate High Flow Equipment Line. Modular, Pre-Fabricated Chambers are constructed of aluminium framing and plexiglass, easy to set up and take down. This is also known as combined altitude, temperature and humidity chamber which is primarily used in R&D and testing of aerospace components. Customers can select optimal model for their needs based on performance and test area capacity.A benefit of this PAC Series Programmable Altitude Chamber is, it comes with an unconditional 2 years warranty.

Altitude Chambers with Temperature and Humidity Controls - HMI Red Lion & Siemens (PLC)

Red Lion (HMI) & Siemens (PLC) or Eurotherm. This chamber comes with two controllers, it’s the choice of the customer if they want HMI or Eurotherm. For HMI 7” Red Lion high resolution TFT provided with program logic controller (Siemens). Number of programs & profile segments with ramp & soak duration provided for cyclic operation. The temperature measuring and control systems provided with PID modules. Set value & process value with graphical display on main screen.

High Temperature Altitude Test Chambers Control Instrumentation -Eurotherm Programmer

Eurotherm (UK make) Programmable microprocessor PID controller for temperature withdigital display powerful PID, no of programs & segments each could be stored in ramp &soak period settable in hours & minutes. No of loops provided for re-appear the program. Control readout of actual and set-point values & calibration capability for actual and set values. PC communication with user friendly software. RS 232/485 communication port provided for operating the chamber through PC as well as data logging facility. Tubular display & graphical display provided with complete historyprinting & storing facility.

Refrigeration system Cascade System

Single or Cascade system. Compressors:Bitzer/GEA Hermetic or semi hermetic. Sealed compressor will be provided for low temperature. The compressor used in the system is Emerson. Liquid receiver &Filter (Danfoss-Denmark), wellbalanced Hi cool(CE approvedCondenserfanwithsafety grill)

Humidification system for Altitude ChamberTemperature and Humidity Chamber

The humidification system will be of steam humidifierwith Low-pressure moisture generator provided in builtwith chamber construction. It will be located insideducting place and top opened steam exhaust through aircirculation. The steam generation is very fine mistcirculating throughout the work space and will becondensed free vaporization. 2.0 KW wet heater will beusing to achieve maximum RH limit. The wet Heateroperating power will be driven through the opto isolatedsolid-state relays. It is operating gradual % of PID outputso that current efficient not decreaseforpowerfluctuation during the operation.

Components for Altitude Chamber

Danfoss, Bitzer, GEA, Henry, ABB, Siemens, Hager, Honeywell, Wika,TAIE, EYC etc.
